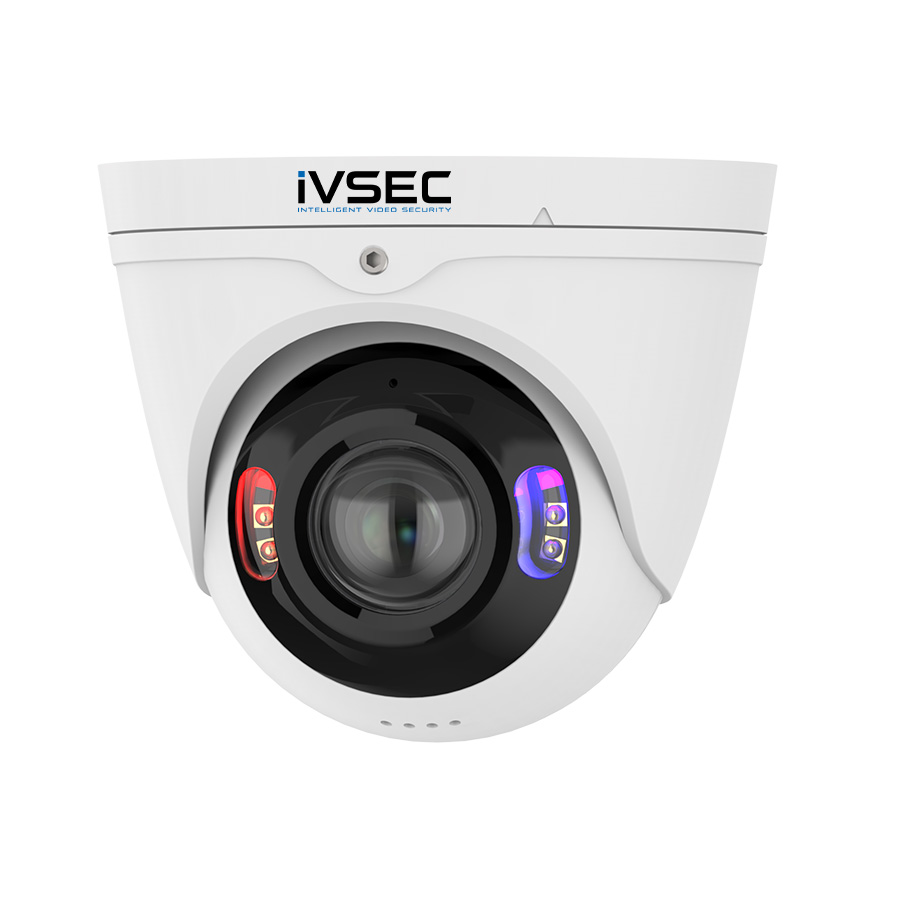

IVSEC EYEBALL IP CAMERA 8MP PANORAMIC 2.8MM FIXED LENS 30FPS ADV DET ADV IVS
The NC543ADX is a revolutionary turret IP camera designed for high-performance surveillance applications. With an impressive 8-megapixel resolution and a 180° panoramic view it offers unparalleled coverage and clarity ensuring every detail is captured with exceptional precision.
| Camera Type | Panoramic |
| Image Sensor | 1/2.7″ Progressive CMOS |
| Maximum Video Resolution Megapixels | 8 |
| Maximum Video Resolution | 3840 X 2160 |
| Frames Per Second FPS | 30 |
| Lens | 2.8mm 180° |
| Lens Type | Panoramic |
| Maximum Night IR Distance M | 30 |
| LED | IR Red & Blue Warm White |
| Video Compression | H.265 H.265 H.264 H.264 MJPEG |
| ONVIF depends on firmware version | ONVIF Profile S/G/T |
| Accessories | IV2422X IV2433X IV2444X IV2455X IV2457X IV2477X |
| Outdoor Use | Yes |
| IP Rating | IP67 |
| Vandal Resistant | Yes IK10 |
| Day/Night Mode | Day Night Auto Schedule |
| Image Enhancement | Rotate Saturation Brightness Contrast Sharpness White Balance BLC 3D DNR HLC |
| Intelligent Video IVS | Motion Detection Face Recogniton Pedestrian & Vehicle Detection Line Crossing Object Detection Cross Counting Heat Map Crowd Density Queue Length License Plate Recognition Intrusion Region Entrance Region Exiting |
| Edge Recording microSD/SDHC Card | Micro SD/SDHC Card |
| Multiple Streams encode format | 3 Streams |
| Software | Device Search/Config Tool Surveillance Client CMS/VMS Mobile app QR code |
| Protocols | TCP/IP HTTP DHCP DNS DDNS RTP/RTSP SMTP NTP UPnP SNMP HTTPS FTP PPPoE |
| Language | English French Spanish Portuguese German Italian Greek Danish Finnish Russia Hebrew Turkish Bulgarian Arabic Korean Japanese Thai Hindi Romanian Dutch Polish |
| Cloud option camera only | Dropbox |
| Audio Streaming | Yes microphone and speaker included |
| Ethernet | Ethernet 10/100/1000 Base-T |
| Power Over Ethernet | Yes |
| Power Supply | Power over Ethernet IEEE 802.3at DC12V |
| Power Consumption | < 14W |
| Connectors | RJ-45 DC Power Input Reset Button |
| Operating Environment | -30ºC to 60ºC -22ºF-149ºF Humidity ≤90 RH |
| In The Box | Free Software available from FTP Printed quick user guide Installation template Mounting screws and plugs |
| Product Dimensions H x W x L mm | 127 x 136 x 136 |
| Packaging Dimensions H x W x L mm | 150 x 150 x 150 |
| Weight Net kg | 0.80 |
| Weight Gross kg | 0.50 |
| Warranty | 3 Year Warranty |
