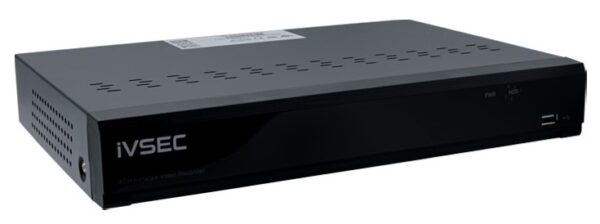

IVSEC NR008XB NVR 8 CHANNELS 8MP 8 x POE PORTS 1 BAY H265 4K HDMI BASIC IVS
This 8 channel PoE NVR is a compact yet powerful solution for your everyday surveillance needs. With support for up to 8 IP cameras it offers seamless recording and monitoring. The NVR’s storage capacity allows for a single HDD up to 16TB. This generous storage space ensures extended retention of crucial footage. The NVR’s PoE feature simplifies camera setup by delivering both power and data over a single Ethernet cable reducing installation complexity. This makes it an ideal choice for small to medium-scale security setups seeking high-capacity storage and efficient camera management.
| Maximum Channels | 8 |
| Maximum Video Resolution Megapixels | 12MP |
| Examples of Channels at a resolution with FPS | 76 Mbps |
| Video Compression | H.264 H.264 H.265 H.265 MJPEG |
| Video Output Resolution | 4K HD-1080p HD-720p 1.3 MP D1 VGA |
| Image Display | 1 4 8 |
| Search Method | Continuous Scheduling Event Triggered By IVS filtering. Snapshot Searching Tagging footage Time Lapse Slice Multiple Snapshot Thumbnail Search Per Hour General Indicated Timeline Seach. |
| Total Storage Potential TB | 16 |
| HDD Bays Size | Bays x 1 up to 16TB per HDD |
| Intelligent Video Dependant On Camera | Motion Detection IVS -Perimeter Intrusion Detection Face Recognition Human & Vehicle Detection Line Crossing Detection Stationary Object Detection Crossing Counting Heat Map Crowd Density Detection Queue Length Detection License Plate Detection Rare Sound Detection Video Tampering |
| Protocols | TCP IP UDP HTTP HTTPS DHCP FTP RTP RTSP DNS DDNS NTP PPPOE UPNP SMTP SMTP P2P QR code |
| Language | English French Spanish Portuguese German Italian Greek Danish Finnish Russia Hebrew Turkish Bulgarian Arabic Korean Japanese Thai Hindi Romanian Dutch Polish |
| Audio Streaming | Two Way |
| Power Over Ethernet | 8 |
| Power Supply | DC 48V 1.2A |
| Power Consumption | 5W Without HDD |
| Connectors | HDD 3.5″ SATA HDD Slot x 1 USB2 Female x 2 Gigabit Ethernet RJ-45 Port x 1 and 8 x PoEports HDMI VGA Audio in and out Power Jack input On off switch |
| Operating Environment | 5ºC to 40ºC 41ºF-113ºF Humidity 20-80 RH |
| In The Box | Printed quick installation guide Mouse HDD screws Power supply |
| Warranty | 2 Years Parts |
| Product Dimensions H x W x L mm | 53 x 300 x227 |
| Packaging Dimensions H x W x L mm | 100 x 400 x 290 |
| Weight Net kg | 1.30 |
| Weight Gross kg | 1.60 |
